Features
• For Water, Steam, and Gas flow measurements.
Pipe sizes from: 1/2”(13MM) to 24”(600MM)
• Integral Transmitter Mount 3 or 5 valve manifold(IT3V-Option Sizes 1/2″ to 2-1/2″)
• Mass Flow Measurement with dynamic processcompensation for pressure, temperature and DP withmultivariable transmitter

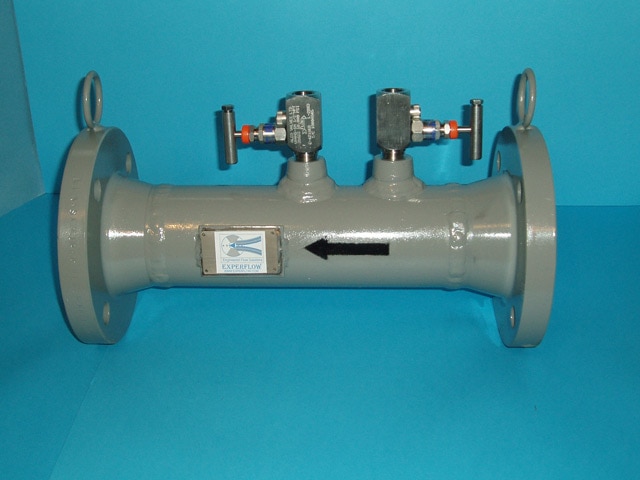

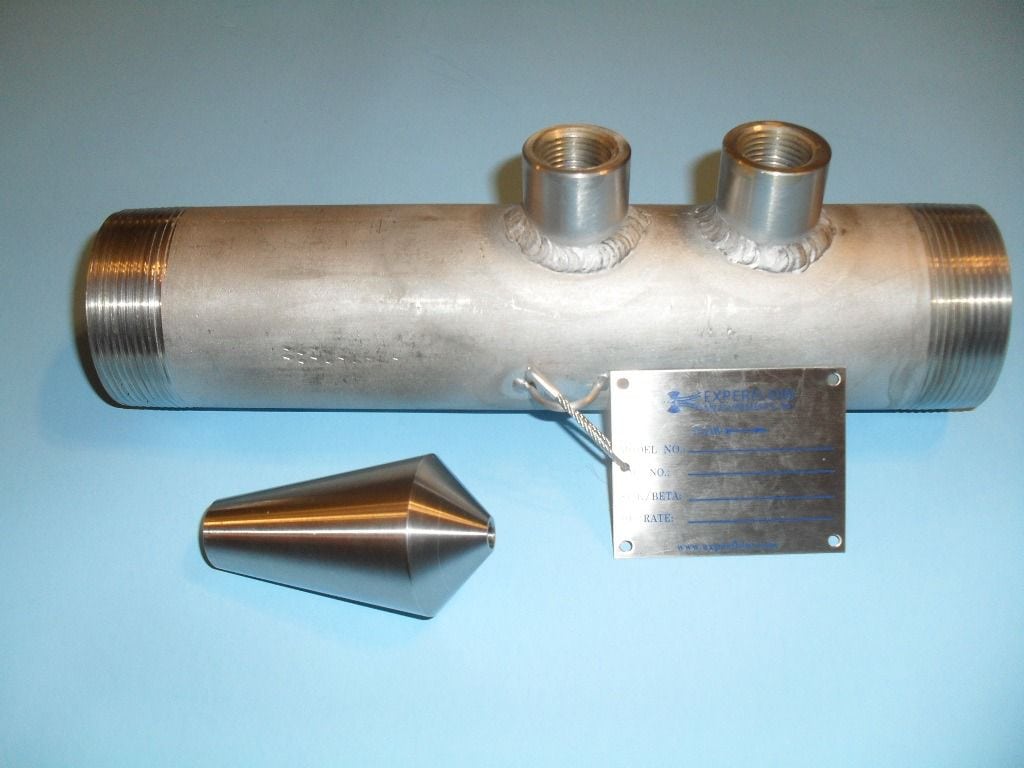

• End connections:– Threaded and Insert Types (up to 3″/75mm)– Butt-weld and flanged (up to 2500psi/165 Bar)
• Wafer types are designed to be installed betweenexisting flanges (Series 300)
• Low pressure losses (High energy savings),low pumping costs (1/2 of orifice plate)
• Very Short or Minimum straight pipe requirements(2D Upstream/1D Downstream)
• Design Standards: ASME/MFC-3M, ISO-5167,ANSI B31.1 and B31.3
• Materials: CS, 304 or 316SS, Chrome Moly,and others: As required TBA
Performance Specifications
| Accuracy: ±0.75% Of Rate – uncalibrated ±0.5% Of Rate – calibrated Better Accuracy can be achieved (combined with DP transmitter ITV3 option) |
| Repeatability: ±0.1% of rate (Over entire flow range) |
| Process Temperature: Up to 2000°F (1100°C) |
| Pressure Rating: Up to 3000psi (200Bar) |
| Minimum Reynolds Number: >50,000 Rd |
| Maximumt Pressure Loss: 25 to 55% of DP (depends on pipe size and Beta ratio) |
| Turn Down Ratio (TDR): 10 to 1 (higher with stacked transmitters) |
| Discharge Coefficient: Very stable – Dependent on Beta Ratio and pipe size |
| Maximum Viscosity: Up to 500 CP (CentiPoise) |
