Wedge Style Meters • NPT Taps – Remote Seal – Chemical Seal
Features
Performance Specifications
Features
• Suitable for pipe sizes from:
1/2″(13mm) to 48″(1200mm)
• Integral transmitter mount 3 or 5 valve manifold(Option – IT3V)
• Mass flow measurements with dynamic processcompensation for pressure, temperature and DP withmultivariable transmitter
• End connections:– Threaded and Insert Types (up to 3″/75mm)– Butt-weld and flanged (up to 2500psi/165 Bar)
• Insert styles are designed to be installed betweenexisting flanges (Series 200)
• Low Permanent Pressure Loss (PPL); High energysavings, low pumping costs (1/2 of orifice plate)
• Design Standards: ASME/MFC-3M,ISO-5167,ANSI B31.1 and BS-7045
• Materials: CS, SS, Alloy 20, Chrome Moly, Monel,Hastelloy, Duplex SS, etc.
Performance Specifications
| Accuracy: ±1% of rate – uncalibrated ±0.5% of rate – calibrated ±0.25% of rate – calibrated (combined with DP transmitter) |
| Repeatability: ±0.1% of rate |
| Process Temperature: Up to 2000°F (1100°C) |
| Pressure Rating: Up to 3000psi (200Bar) |
| Minimum Reynolds Number: 50,000 Rd |

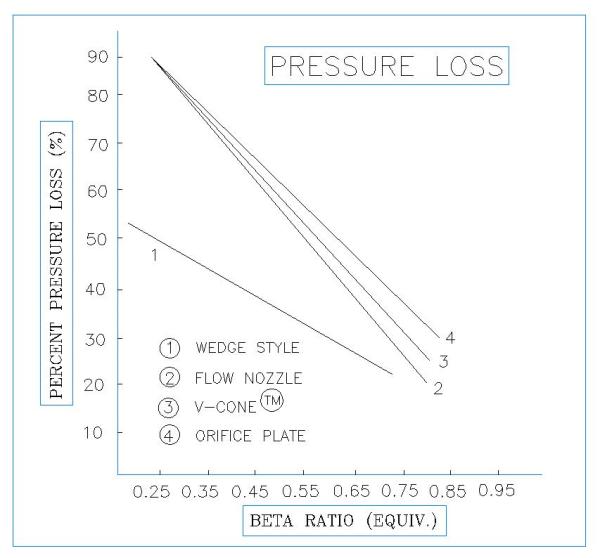

| Permanent Pressure Loss (PPL): 25 to 40% of DP (depends on pipe size and Beta ratio) |
| Turn Down Ration (TDR): 10 to 1 and higher with stacked transmitters |
| Discharge Coefficient: Stable over the entire flow range |
| Maximum Viscosity: Up to 5000 CP – CentiPoise (MPAS) |
